Dump straight into the trailer

Direct-to-Trailer Rock Transfer

For large-scale farming operations, the Scorpio 550 SF takes productivity to the next level with a revolutionary conveyor system that loads rocks directly into a dump trailer. This 18-foot (5.5m) model maintains the same core features as the standard Scorpio 550 while adding ISOBUS compatibility for seamless tractor integration and effortless control from the cab.

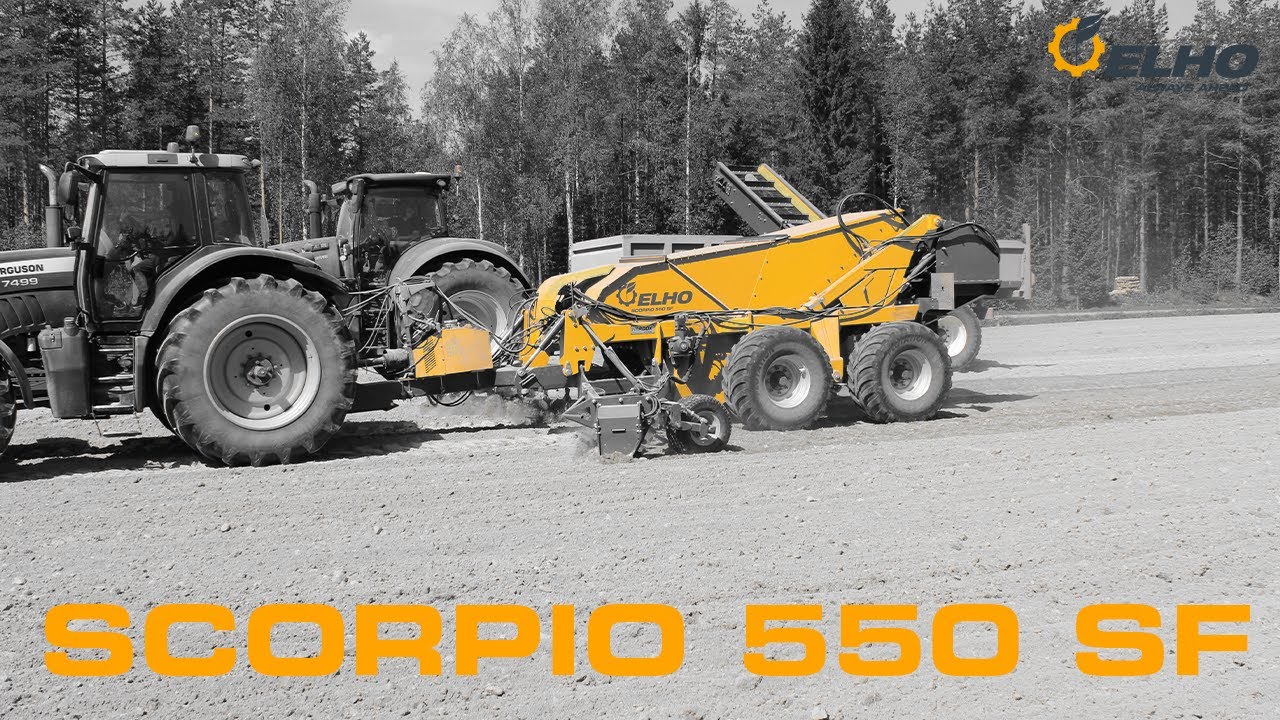

Image of the ELHO Scorpio 550 SF Rock Picker

The ELHO Scorpio 550 SF (SideFlow ) Rock Picker features a conveyor system that transports the rocks out of the machine, straight into a dump trailer.

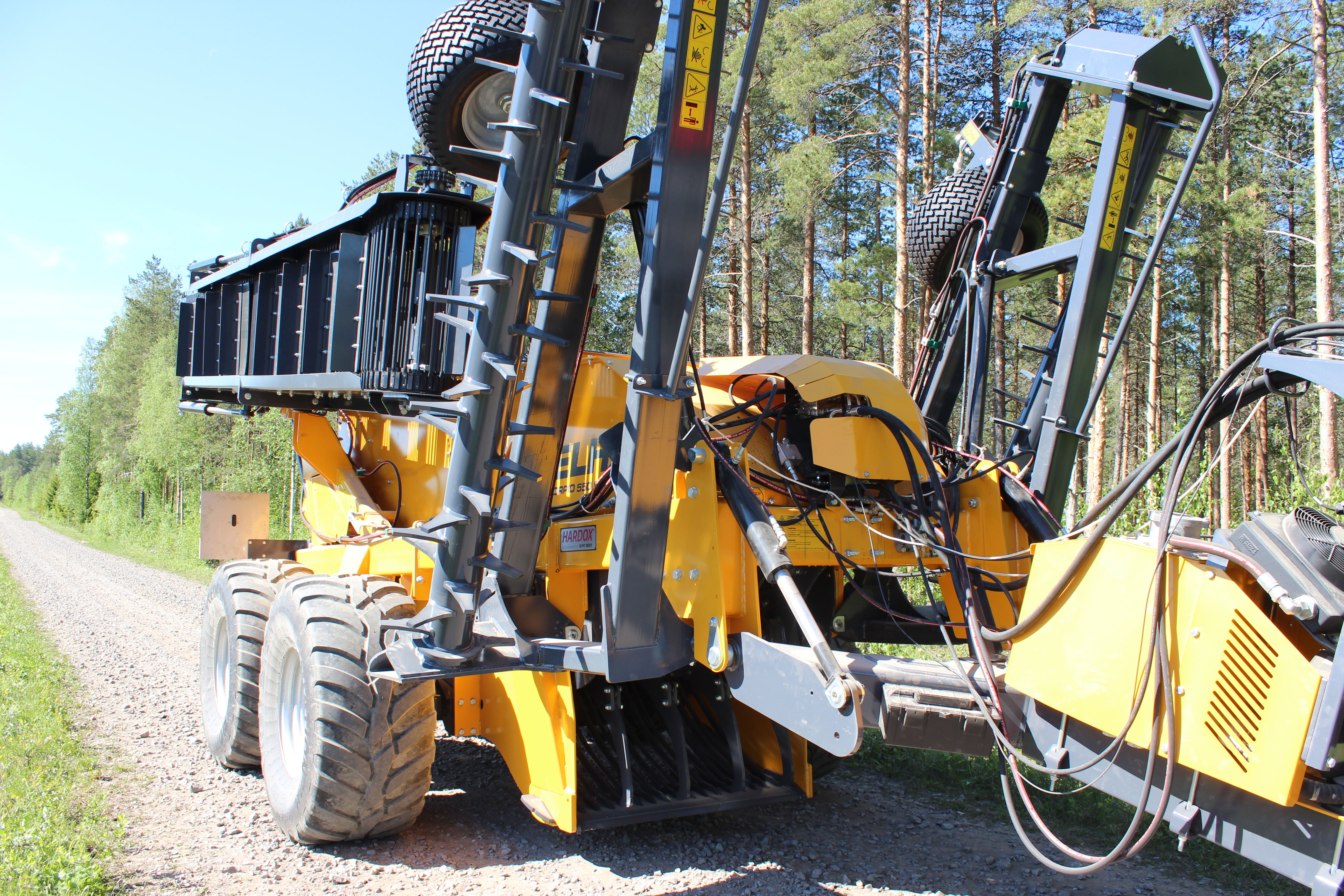

The middle conveyor has a very sturdy structure and lifts rocks from the ground. The kinetic energy of the rocks is dissipated before arriving at the side conveyor, which has a lighter structure and is equipped with spring steel rods and a rubber mat. Both conveyors effectively sieve dirt off the rocks.

The conveyors can be stopped temporarily, for example in the headland, to avoid an obstacle or when switching trailers. The rake tines continue to collect rocks all the time, which are then lifted onto the conveyor when it is reactivated.

The Scorpio 550 SF Rock Picker is controlled electronically, as the Scorpio 710 model. The Scorpio 550 SF is ideal for large field areas where it would be inefficient for the pulling tractor to unload the hopper by itself.

Addons

Hydraulic unit
Towing eye K80
ISOBUS kit (for tractors without ISOBUS equipment)

Technical details

Tractor power requirement, min/max
110-160
kW
147-215
hp
The tractor weight and power is determined based on the conditions
Minimum recommended tractor hydraulic pump size
160
l/min
42
gal/min
Hydraulic flow max
120
l/min
32
gal/min
Working width
5.5
m
18
in
Stone size
40-400
mm
1.6-16
in
Varies due to stone shape
Working depth
0-7
cm
0.6-4
in
Driving speed
1-7
km/h
0.6-4
mph
Pick-up lifting tines
16
pcs
Pick-up tine lifting force
400
kg
882
lbs
Pick-up tine flex up from screen
210
mm
8
in
Wheels, tandem
560/60-22.5
Rake wheels
26x12.00-12
Weight
9300
kg
20500
lbs
Length
8.4
m
331
in
Width
3
m
118
in
Height
3.3
m
129
in
